High-Speed, Precision Presses from OAK Press Solutions Inc.

OAK Press Solutions is an American owned company that builds its presses in the USA. OAK will gladly provide our customers with a press to suite their needs. Our castings are made using a lost foam process, therefor making it possible for us to make a press sized to meet your specific needs. OAK Press Solutions goes further than most press manufacturers are willing to go for their customers. We can provide customers with an entire turnkey systems, taking the head ache and down time out of the equation. Whether you’re in need of a precision stamping press, mechanical press, lamination press, or any other type of high-speed press, OAK Press can help. With full lines that include our state-of-art P 400, LP, CP, and SS series – as well as single component replacement or complete system remanufacturing press rebuilds – we have the right press for your specific requirements.

If you would like to learn about the turnkey solutions we offer to a number of industries, click the button below.
Turnkey Solutions

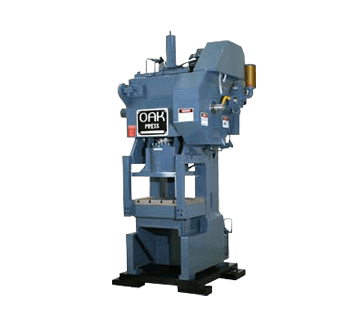

PP-400 Series

The PP-400 is a single point, straight sided press with superior slide rigidity, ideal for a wide range of applications.

Learn More
Capacity
45 tons
Speed
300 to 1000 SPM
Stroke
3"
Slide Area
24" x 24"
Bolster Area
30" x 30"

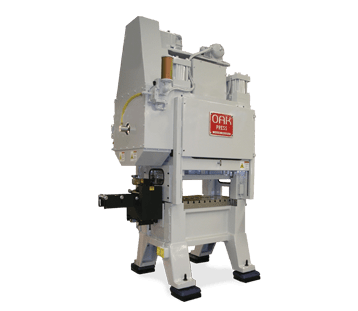

SS Series

The SS Series press is a super-speed, precision two-point straight side press used in a wide variety of applications.

Learn More
Capacity
30 to 60 tons
Speed
300 to 1500 SPM
Stroke Length
1.5" max
Slide Area
L-R 34.5" - 58.5"
F-B 15.5" - 19.62"
Bolster Area
L-R 40" - 59.90"
F-B 15.5" - 19.5"

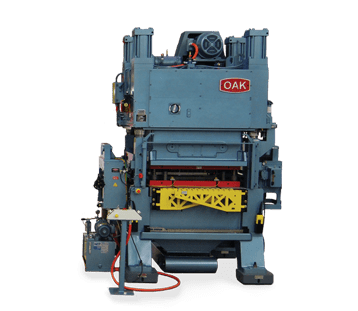

CP Series

The CP Series press is a high-speed, four-point straight side press providing even loading across the slide.

Learn More
Capacity
124 to 158 tons
Speed
133 to 400 SPM
Stroke
3" max
Slide Area
L-R 52.50"
F-B 48"
Bolster Area
L-R 51"
F-B 48"

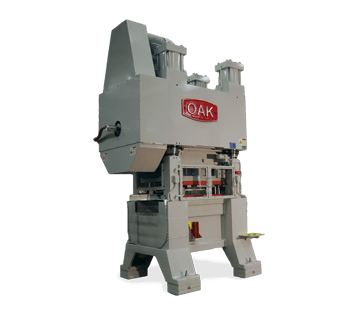

LP Series

The LP Series press is a two-point straight side, high-speed precision press featuring superior vibration dampening.

Learn More
Capacity
30 to 300 tons
Speed
133 to 400 SPM
Stroke
3" max
Slide Area
L-R 28.5" - 79.12"
F-B 15.5" - 35"
Bolster Area
L-R 34" - 99"
F-B 15.5" - 36"
Press Rebuilds

OAK Press Solutions Inc.’s press rebuild services can be used for simple component replacement or complete system remanufacturing.

Learn More
