HVAC Systems from the OAK Companies

OAK Press has been teamed up with Burr Oak Tool since its inception. OAK Press presses are industry leaders in fin stamping. The OAK high speed stamping presses are combined with the Burr Oak precision tooling to create our industry leading fin lines.

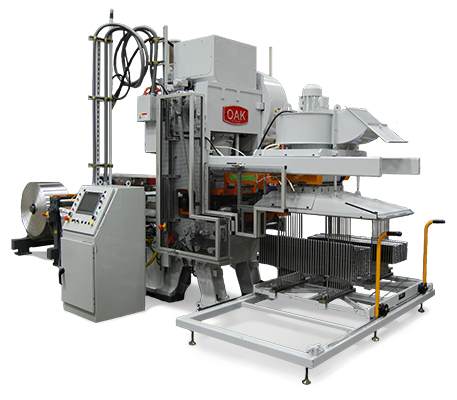

FP-400

The OAK FP-400 fin press provides a reliable, cost-effective fin making solution.

Learn More
Tonnage
45 US Tons Force
400 kN
Production
160 to 400 SPM
FOOTPRINT
2.5 m x 6.5 m
8' x 21.5'
MAXIMUM FIN LENGTH
60" (1,524 mm)
MAXIMUM FIN WIDTH
13" (330 mm)
SHUT HEIGHT
9" (228 mm) to 11" (304 mm)
STANDARD STROKE
1 1/2" (40 mm) to 2" (51 mm)

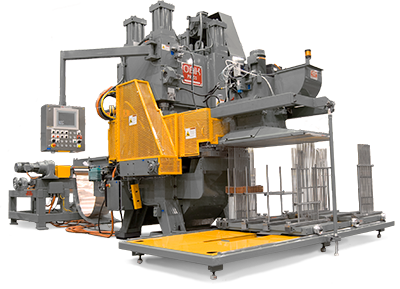

Oak FP-2B

The OAK FP-2B fin press serves as an ideal fin making solution when intricate fin patterns are required.

Learn More
Tonnage
60 US Tons Force
534 kN
Production
160 to 300 SPM*
Footprint
3.7 m x 10.1 m
12' x 33'
MAXIMUM FIN LENGTH
108" (2,742 mm)
MAXIMUM FIN WIDTH
19" (480 mm) for 36" (914 mm) press
31" (785 mm) for 48" (1,219 mm) press
SHUT HEIGHT
9" (228 mm) to 11" (304 mm)
STANDARD STROKE
1" (25 mm) to 2" (51 mm)

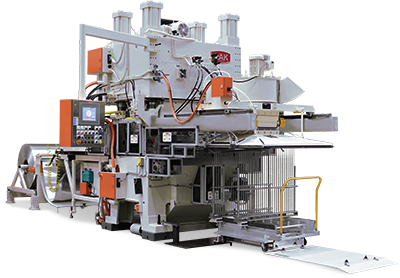

FP-1000

The OAK FP-1000 fin press provides enough stamping power for the most demanding fin designs, while remaining flexible for quick die change options.

Learn More
Tonnage
112 US Tons Force
1,000 kN
Production
160 to 400 SPM
FOOTPRINT
3.7 m x 10.1 m
12' x 33'
MAXIMUM FIN LENGTH
108" (2,742 mm)
MAXIMUM FIN WIDTH
37" (940 mm)
SHUT HEIGHT
9" (228 mm) to 11" (304 mm)
STANDARD STROKE
1" (25 mm) to 2" (51 mm)

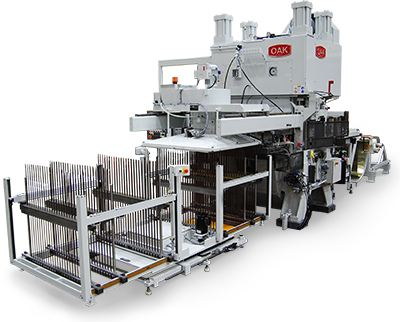

FP-1400

The OAK FP-1400 is a high performance press and line for increased fin stamping capacity. Higher tensile fin stocks and larger fin dies won’t deter or even slow down the 1400.

Learn More
Tonnage
160 US Tons Force
1,400 kN
PRODUCTION
160 to 400 SPM
Footprint
3.7 m x 10.1 m
12' x 33'
MAXIMUM FIN LENGTH
108" (2,742 mm)
MAXIMUM FIN WIDTH
37" (940 mm)
SHUT HEIGHT
9" (228 mm) to 11" (304 mm)
STANDARD STROKE
1" (25 mm) to 2" (51 mm)
Need a stand-alone press?

If you’re not in need of a turnkey solution, but require a stand-alone press instead, you can learn more about Oak Press Solutions Inc.’s press series by clicking the button below.
